Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket

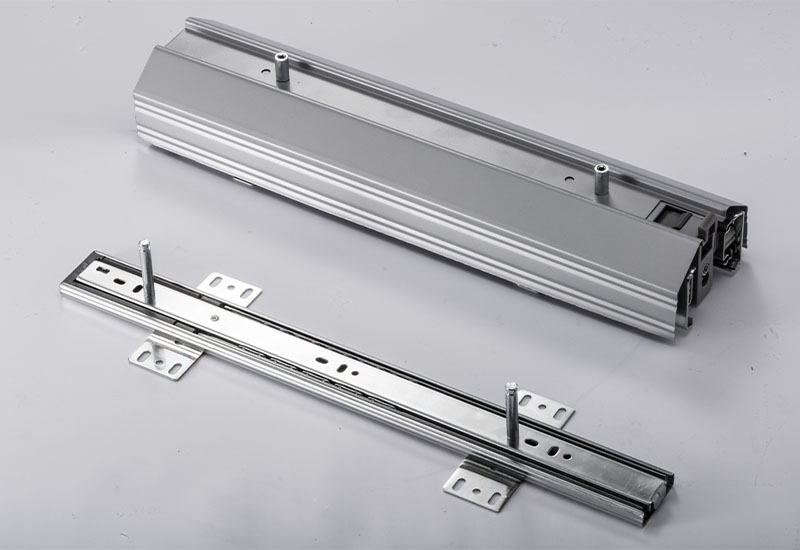

• In the carrier mechanism and top guide, used heavy-duty rail with soft-closing.
• 150mm~500mm Slim body design, make full use of the space between the cracks.
• Product length can be adjusted according to the height of the cabinet.
• In the carrier mechanism and top guide, used heavy-duty rail with soft-closing.
• Carrying capacity is 80 kg max.
• Product length can be adjusted according to the height of the cabinet.
• Door can be adjustable two axes via door connections parts.
• Three different size of baskets are appropriate to the width of the cabinet.（Other sizes can be customized)

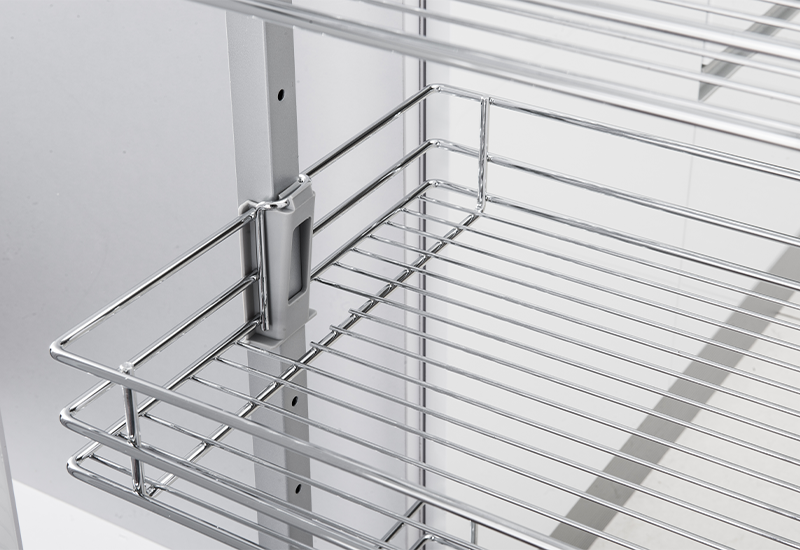

• Baskets can be fixed to desired hight of the frame with plastic hangers.
• Carrying mechanism, guide and frame are grey painted, basket frames chrome plated.

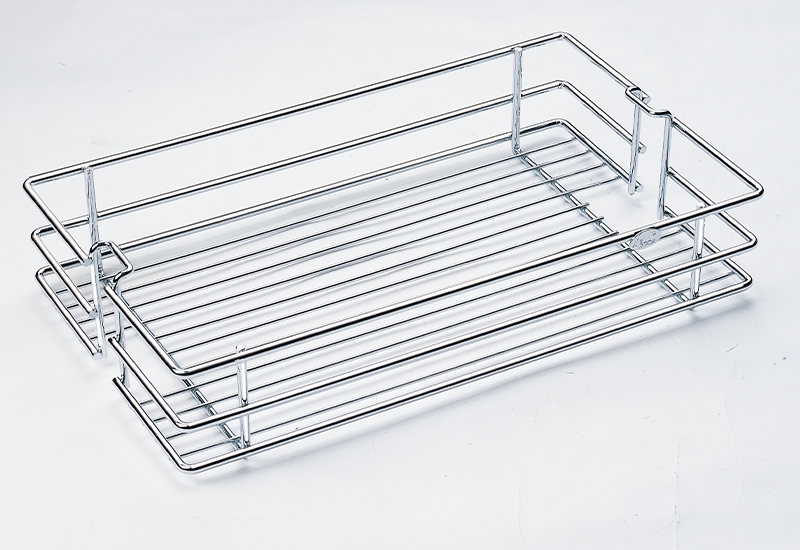

• Alternatively in wire basket/ wooden bottom basket/ glass basket available.
| Name | Item | Cabinet | Depth x Width x Height | Description | Material | Color |
| Tall Unit Basket | KPTJ012D-150 | 150mm | 480 x 100 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
| Tall Unit Basket | KPTJ012D-200 | 200mm | 480 x 150 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
| Tall Unit Basket | KPTJ012D-250 | 250mm | 480 x 200 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
| Tall Unit Basket | KPTJ012D-300 | 300mm | 480 x 250 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
| Tall Unit Basket | KPTJ012D | 400mm | 480 x 350 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
| Tall Unit Basket | KPTJ012D-500 | 500mm | 450 x 450 x (1850-2200) mm | 6 Layers | Iron | Silver grey+chrome |
